Product Description

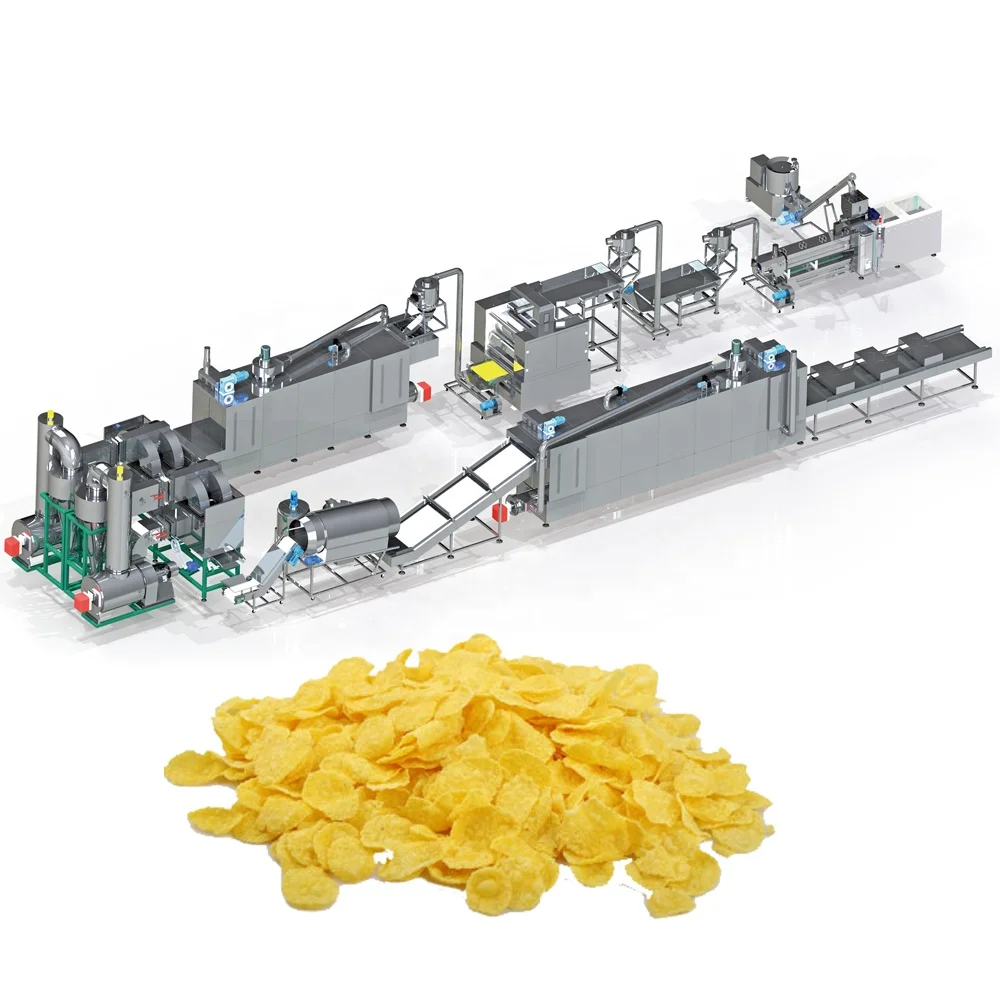

Industry Breakfast Cereal Crunchy Corn Flakes Machine.
This corn flakes processing line takes corn and other cereals as main material. consists of mixing. extruding. pressing. drying and coating. which can be finished in one time. characterized by high efficiency. fully automatic.
The final products can be natural corn flakes. sugar-coated corn flakes. and breakfast cereals with different shapes.
Basic material | powder of Corn. rice. wheat. oat. barley. etc. | ||||||
Production procedure | Mixing. Extruding. Flaking. Roasting. High temperature inflating. sugar-coating. Roasting. cooling. packing. | ||||||
Final Products | Natural corn flakes; Coated corn flakes; Variety shapes of breakfast cereals are available. such as ball. tube. stick. ring. fruit loop. star. wheel and flower and heart shape by adjusting the mould in the extruder. | ||||||
Capacity | 100-500kg/hr with different model machines | ||||||
Processing Flow
Our engineer could design the layout drawing according to your factory size. Customization is accepted.
Natural Corn flakes production line.
Mixing–Extruding–Flaking–Drying–Hot Air roasting–Cooling–Packing
Sugar Coated Corn Flakes Production Line.
Mixing–Extruding–Flaking–Drying–Hot air roasting–Sugar spraying–Sugar Coating–Drying–Cooling–Packing
Specification
item | value |
Applicable Industries | Manufacturing Plant. Food & Beverage Factory. Restaurant. Food Shop. Food & Beverage Shops |
Showroom Location | Egypt. Indonesia. Thailand |
Condition | New |
Production Capacity | 150kg/h. 250kg/h. 350kg/h. 400kg/h. 600kg/h. 700kg/h. 750kg/h |
Type | Tortilla |
Place of Origin | China |
Shandong | |
Brand Name | MT |
Voltage | 380V/220V |
Power | 65kw-200kw |
Dimension(L*W*H) | 33000x1200x2500mm customizable |
Weight | 5000KG |
Warranty | 1 Year |
Marketing Type | Ordinary Product |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Warranty of core components | 1 Year |
Core Components | Motor |
Key Selling Points | Easy to Operate |
Product name | cereal flakes making machine |
Capacity | 200kg/h–1200kg/h |
Application | Food Processing Units |
Keywords | cereal flakes making machine |
Material | Stainess Steel |
Raw material | corn flour |
Processing Types | Extruder |
After-sales Service Provided | Service Machinery Overseas |
After Warranty Service | 1year |
MOQ | 1 Set |
Technical Parameter
Model | Installed power | Power consumption | Capacity | Size |
MT70 | 160KW | 120KW | 150-200KG/HR | 41 x 1.5 x 2.2m |
MT85 | 190KW | 140KW | 300-400KG/HR | 43 x 1.5 x3.2m |
MT75 | 210KW | 150KW | 300-500KG/HR | 45 x 1.5 x3.5m |
Sample Picture
Corn flakes with/without sugar.
With some machines of this corn flakes processing line. various shapes of breakfast cereal snacks can be produced also.
Machine Details
Name | MT-75 Twin Screw Extruder |
Capacity | 200-300kg/hr |
Usage | puffing snacks extrusion |
Working principle | Consists of feeding system. extruding system. cutting system. heating system. gearing system and controlling system. |
Advantage | Automatic lubricating. cooling function. guarantee safe running. Screw is made by special tech. bear grinding. steady and reliable. long service life. |
Name | Corn Flakes Dryer Machine |
Heating Source | Gas. Electric |
Capacity | According to Extruder |
Function | drying puffed snacks after extruding. pre-drying snacks. to avoid sticky problem for next procedure. |
Name | New type Corn flakes flaking machinery |
Capacity | 200-300kg/hr |
Usage | Flaking the puffed corn granules into flakes |
Advantage | PLC control system; Hydraulic system for double rollers; Double Motors for separate roller driving; temperature pipe is controlled evenly by infrared sensor. |
Name | Hot air roasting oven |
Function | after hot air roasting. bubbles will happen on the surface of corn flakes. then crispy corn flakes will be produced. |
Consists | vibrating pan with high temperature spraying tubes. The combustion chamer adopts conciliation burner. Two separate circulating fans and cyclone dust removal device. |
Advantage | sanitary. precise temperature control |
Name | Coating system |
Consists | double tumble for sugar melting. elevator. coating drum. spraying nozzle. |
Function | melting and spraying sugar onto the surface of natural corn flakes. |
Capacity | According to Extruder. different model will be chosen. |
why choose us
Specializing in R&D. production. sales. application promotion of food engineering projects.With more than 10 years of quality. expertise and professionalism on puffed snacks machine industry. we have gained good reputation on market.
We offer one-turnkey solution project for customers. Machine customized is accepted according to customer's requirements. With high quality machines . cost-effective price and good after-sale service. our machines have been popular on market. welcome you to visit us before ordering.
Until now. our machines have been exported to many countries. which gains good reputation from all over the world.
Packing&Delivery
Plastic bubble film on the surface of machines. then wooden case for the spare parts of all processing line based on customer's requirements.
We can supply fumigation package and certificate.
Special packing requirement is available.
FAQ
1.Q: Are you manufacturer?
A: We are professional manufacturer for more than 10 years experience. with professional engineering and after-sales team.
2. Q: Do you offer formula?
A: we will supply basic recipe and machine setting parameters to customers.
3. Do you accept machine customization?
A: We will offer suitable proposal and factory layout according to customers' factory size and local voltage.
4. Q: what's your after-sale service?
A: After shipment. one or two engineers will be asked to your factory for machine installation. testing and training service.
