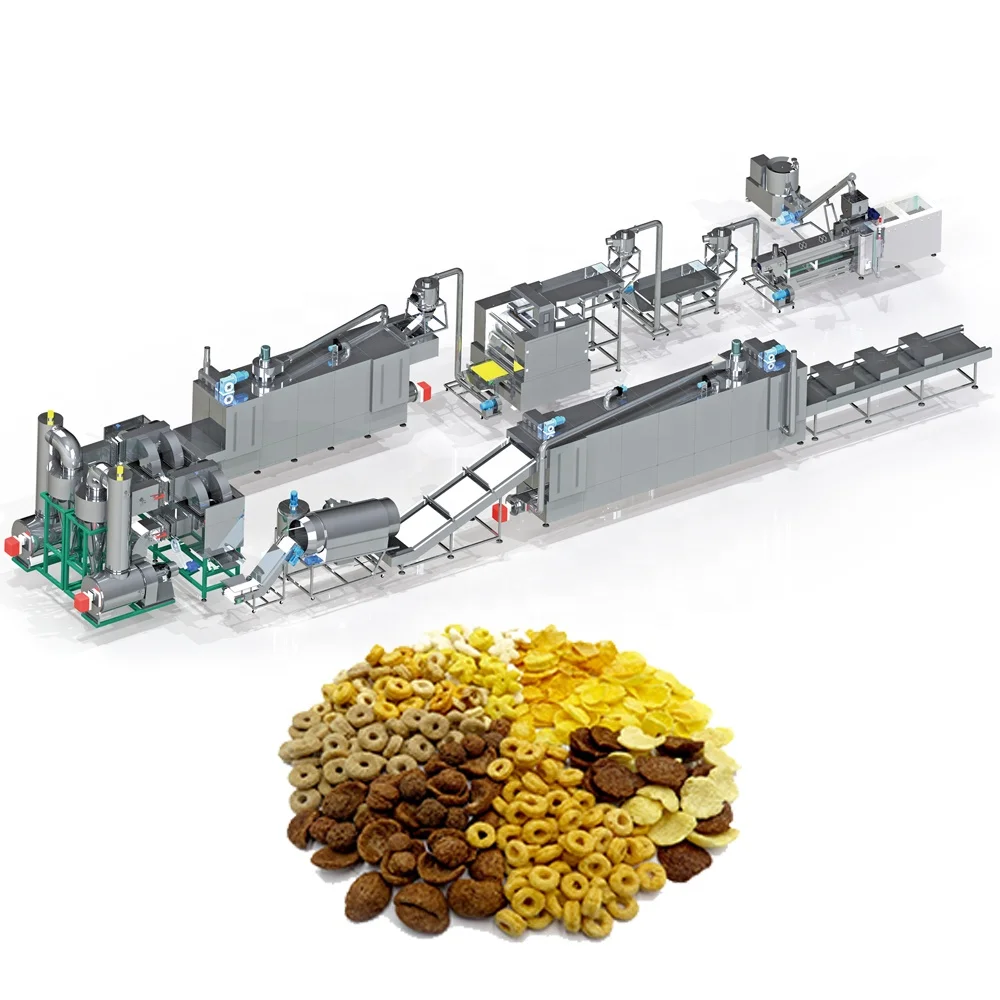

corn flakes production line Breakfast cereal production machine line corn flake making machinery
Corn flakes making machine is applied to make corn flakes. breakfast cereal snacks .normal corn puff snacks with various shapes and flavors.This machine adopts the technology of two kinds of different texture and taste of the product in the double screw extrusion co extruding advanced at the same time.It is a breakthrough to solve the problems of regarding to sticky material on the roller. low output of flakes pressing .low shaping rate.poor taste and so on. High productivity is for MT customer's benefit.
1.Raw materials: corn grits. corn flour. rice flour. Wheat flour. soya bean. peanut. walnut. sugar. (chocolate for coref filling snacks).
2.Output capacity: 150kg/h for corn flakes. 300kg/h for corn flakes; 150kg/h. 250kg/h. 500kg/h for corn puffs snacks food. cereals. 160kg/h. 250kg/h for core filling snacks food.
3.Machine Advantages:
1)Twin screw extruder have self cleaning function;
2)Gear box oil forced automatic lubrication system;
3)Special non stop cutting system;
2.Output capacity: 150kg/h for corn flakes. 300kg/h for corn flakes; 150kg/h. 250kg/h. 500kg/h for corn puffs snacks food. cereals. 160kg/h. 250kg/h for core filling snacks food.
3.Machine Advantages:
1)Twin screw extruder have self cleaning function;
2)Gear box oil forced automatic lubrication system;
3)Special non stop cutting system;
Mixer
Output:10-30kg/
load Power:4kw T
ank Size: φ600 x500mm Dimention:1000*800*1200mm Flour Mixer is used to mix the raw material. like corn flour . rice flour. fish bone flour with liquid and other additives.
Stainless steel structure. the parts in contacting with the raw material or products. cover small area. easy cleaning and operate stably.
Stainless steel structure. the parts in contacting with the raw material or products. cover small area. easy cleaning and operate stably.
Screw conveyor
Driving Power: 0.75kw
Dimension: 2700×500×2400mm
Screw Conveyor is used to convey the materials to the feeder of the extruder.
Stainless steel structure. especially the parts in contacting with the raw material or products; The materials is conveyed in a sealed stainless steel roller to the feeding hopper of extruder without leaking. dust pollution; Equipped with vibrating sifter to feed the materials stably and evenly; Easy cleaning and operation; run stably.
Stainless steel structure. especially the parts in contacting with the raw material or products; The materials is conveyed in a sealed stainless steel roller to the feeding hopper of extruder without leaking. dust pollution; Equipped with vibrating sifter to feed the materials stably and evenly; Easy cleaning and operation; run stably.
Double Screw Extruder Machine
MT-65
Double Screw Extruder serves to gelatinize flour and starch continuously and automatically. After dosing. the materials are worked by two co-rotating screws composed by sectional modules for the following functions: forward and backward transport.
mixing. de-gassing. cooking and forming
Corn flakes press machine.
Material:- Stainless Steel Function:- Pressing Extruded pellets into flakes Separate Controller Box
1.it is with big roller to press
2.it is with cooling system
2.it is with cooling system
3.it can adjust the roller distance. adjust the flakes thickness
Power:16.12 kw
Size: 1550*1300*2000mm.
Roller:510* 310*1050mm
Roller:510* 310*1050mm
High-temperature Oven
Technical Parameter:
Size:4.5*1.4*1.8m
Power:3.75kw
Function: this high temperature oven is used to baking the corn flakes .this oven we use gas for baking .and there are both side baking system . it can make the corn flakes more crisp.
Size:4.5*1.4*1.8m
Power:3.75kw
Function: this high temperature oven is used to baking the corn flakes .this oven we use gas for baking .and there are both side baking system . it can make the corn flakes more crisp.
Sugar Spraying System
Technical Parameter:
Total Power: 28.75KW
Dimension: 4000×1900×1880mm
Roller Size: about Ø600 x 2700mm
Function: This machine consists of conveyor. melting tank and temperature keeping roller. and it is used to spray sugar on surface of the corn flakes.
Total Power: 28.75KW
Dimension: 4000×1900×1880mm
Roller Size: about Ø600 x 2700mm
Function: This machine consists of conveyor. melting tank and temperature keeping roller. and it is used to spray sugar on surface of the corn flakes.
Model | Installed power | Real power | Output | Dimension |
MT-65 | 84kw | 59kw | 120-150kg/h | 12000*1200*2200mm |
MT-70 | 132kw | 92kw | 200-250kg/h | 23000*1500*2200mm |
MT-75 | 186kw | 140kw | 300-400kg/h | 24000*1500*2800mm |
MT-85 | 239kw | 167kw | 400-500kg/h | 28000*1500*2800mm |
Our company(MT Machinery Co.. Ltd.)has plenty of experience in the food machine industry development. We have well-experienced managers. outstanding engineers as well as well trained techincal workers. By constant technical exchange with well_known firms of the same line in the world and also by introduction of advanced technique and experience into our company. we have established a
strong technical guarantee system. Our company is a famous manufacturer of puffed extruder and food machinery.
Our products are sold very well throughout China and are also introduced to Southeast Asia. East Europe. Africa and other regions. Our market share is increasing sharply each year.
strong technical guarantee system. Our company is a famous manufacturer of puffed extruder and food machinery.
Our products are sold very well throughout China and are also introduced to Southeast Asia. East Europe. Africa and other regions. Our market share is increasing sharply each year.
Certifications
We can provide the electronic edition certificates for Jinan MT Machinery extruded China. High quality breakfast cereals process. full automatic sugar corn flakes production line. if questioned. or you can see the original documents in our factory.
Packaging & Shipping
1.Packaging Specification
Outside Package:Wooden Packing with Export Standard.
2.lead time:
5-30days after received 40% advance payment.
3.About Shipping:
We can be resonsible for the shipping .of course.we can also accept and cooperate with your agent if you have shipping forwarder in China.
After Sales Service
Outside Package:Wooden Packing with Export Standard.
2.lead time:
5-30days after received 40% advance payment.
3.About Shipping:
We can be resonsible for the shipping .of course.we can also accept and cooperate with your agent if you have shipping forwarder in China.
After Sales Service
1. Free consultation service before. during. and after sales;
2. Free project planning and design services;
3. Free online debugging of equipment until everything is functional;
4. Free management of equipment long distance shipping from seller's factory to place by the buyer;
5. Free training of equipment maintenance and operating personally in the seller's factory;
6. Free new production techniques and formulas;
7. Provide 1 year complete warranty and life-time maintenance service; The seller is responsible for the nature damage of then machinery in one year except for man-made damage. All spare parts and wearing parts are attached with the machinery for free.
