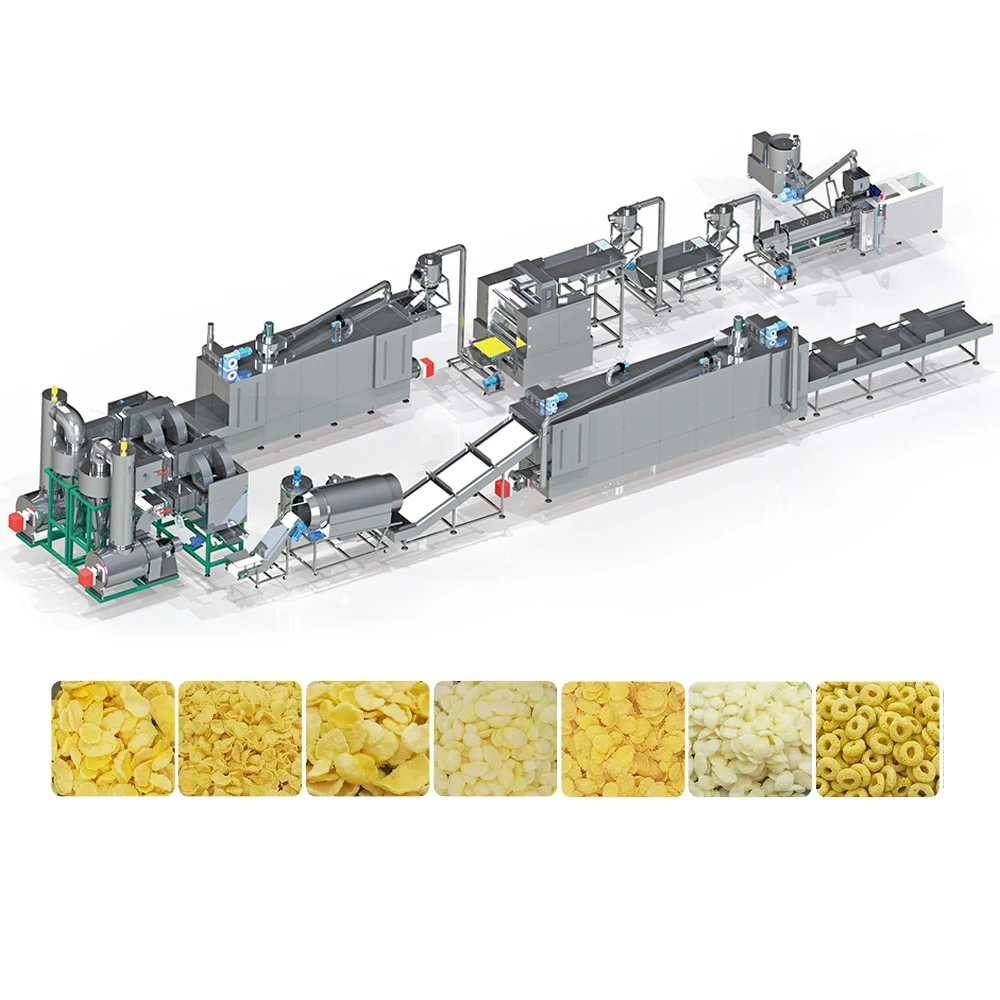

Automatic Cornflakes Making Machine Corn Flakes Breakfast Cereals Processing Production Line
Product Description
1) Automatic Cornflakes Making Machine Corn Flakes Breakfast Cereals Processing Production Line can use corn. rice. oat. other grain powder. and also some healthy nutritional ingredients like vitamin as raw materials to produce kinds of breakfast cereal snacks which can be eaten with milk as instant food.
2)After coated with sugar syrup or honey. the cereal will be tasted well and aet like leisure snacks directly. The breakfast cereal shapes are like ring. ball. star. stick. and others changed by different moulds.
3)Corn flakes making machine can also produce other puffed snacks. corn flakes cereals processing equipment is muti-functional line which is the beat choice for clients.Corn Cereals Making Machine :
Flour Mixer → Screw Elevator → Double-screw Extruder →Elevator → Dryer →Elevator → Coating Line → Vibrating Spreader → Elevator →Dryer → Cooling Conveyor .
Product details
Double Screw Extruder Machine
MT-65 Double Screw Extruder
serves to gelatinize flours and starches continuously and automatically.
After dosing. the materials are worked by two co-rotating screws composed by sectional modules for the following functions: forward and backward transport. mixing. de-gassing. cooking and forming.
Corn flakes press machine.
Material:- Stainless Steel Function:- Pressing Extruded pellets into flakes Separate Controller Box 1.it with big roller to press
2.it with cooling system 3.it can adjust the roller distance to adjust the flakes
2.it with cooling system 3.it can adjust the roller distance to adjust the flakes
thickness Power:16.12 kw
Size: 1550*1300*2000mm.
Roller:510* 310*1050mm
Roller:510* 310*1050mm
Mixer
Output:10-30kg/load Power:4kw
Tank Size: φ600 x500mm Dimention:1000*800*1200mm Flour
Mixer is used to mix the raw material. like
cornflour . rice flour. fish bone flour with liquid and other additives.
Stainless steel structure. the parts in contacting with the raw material or products. cover small area. easy cleaning and operate stably.
cornflour . rice flour. fish bone flour with liquid and other additives.
Stainless steel structure. the parts in contacting with the raw material or products. cover small area. easy cleaning and operate stably.
Screw conveyor
Driving Power: 0.75kw Dimension: 2700×500×2400mm Screw Conveyor
is used to convey the materials to the feeder of the extruder.
Stainless steel structure. especially the parts in contacting with the raw material or products; The materials is conveyed in a sealed stainless steel roller to the feeding hopper of extruder without leaking. dust pollution; Equipped with vibrating sifter to feed the materials stably and evenly; Easy cleaning and operation; run stably.
Stainless steel structure. especially the parts in contacting with the raw material or products; The materials is conveyed in a sealed stainless steel roller to the feeding hopper of extruder without leaking. dust pollution; Equipped with vibrating sifter to feed the materials stably and evenly; Easy cleaning and operation; run stably.
High-temperature Oven
Technical Parameter:
Size:4.5*1.4*1.8m
Power:3.75kw
Function: this high temperature oven is used to baking the corn flakes .this oven we use gas for baking .and there are both side
baking system .can make the corn flakes more crisp.
Size:4.5*1.4*1.8m
Power:3.75kw
Function: this high temperature oven is used to baking the corn flakes .this oven we use gas for baking .and there are both side
baking system .can make the corn flakes more crisp.
Sugar Spraying System
Technical Parameter:
Total Power: 28.75KW
Dimension: 4000×1900×1880mm
Roller Size: about Ø600 x 2700mm
Function: This machine consists of conveyor. melting tank and temperature keeping roller. and it is used to spray sugar on the
surface of the corn flakes.
Total Power: 28.75KW
Dimension: 4000×1900×1880mm
Roller Size: about Ø600 x 2700mm
Function: This machine consists of conveyor. melting tank and temperature keeping roller. and it is used to spray sugar on the
surface of the corn flakes.
Parts: If you buy our machine. we will prepare some free accessories and toolboxes.
product show
Corn flakes being one of most nutritious foods and is consumed as breakfast food not only in China but-elsewhere in the world. Basically. it is prepared from maize; this is the main raw material. Flavours. like sugar or salt are also added. Maize. the main raw material. is itself a corn grain. Corn flakes have very good taste. Though several other breakfast cereals are also available in the market but they are still to gain popularity.
Packing & Delivery
Packaging | ||
Size | according to exactly machine type | |
Weight | according to exactly machine type | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries.the wooden box will be fumigated.If container is too tigher.we will use pe film for packing or pack it according to customers special request. | |
Company information
Our company
Our company(MT Machinery Co.. Ltd.'s )has good experience of the industry development. We have well-experienced managers.outstanding engineers as well as well-trained technical workers. By constant technical exchange with well-known firms of the same line in the world and also by introduction of advanced technique and experience into our company. we have established a strong technical guarantee system. Our company is a manufacturer of puffed extruder and food machinery. Our products are sold very
well throughout China and are also introduced to Southeast Asia. East Europe. Africa and other regions.Our market share is increasing each year.
well throughout China and are also introduced to Southeast Asia. East Europe. Africa and other regions.Our market share is increasing each year.
Our customer :
As a professional Jinan MT production line manufacturer. Jinan MT Co..Ltd has exported the Jinan MT has exported machine to more than 80 countries and regions. such as South Africa.India. Malaysia. Indonesia and so on. We hope to have long friendly business relationship with more Jinan MT making machine customers from all over the world in the future .
As a professional Jinan MT production line manufacturer. Jinan MT Co..Ltd has exported the Jinan MT has exported machine to more than 80 countries and regions. such as South Africa.India. Malaysia. Indonesia and so on. We hope to have long friendly business relationship with more Jinan MT making machine customers from all over the world in the future .
Certifications
Certificate of Industria breakfast cereal corn flake press flaking equipment corn chips snack food process machinery line
We have got several certificates including CE .Our company(MT Machinery Co.. Ltd.'s has a comprehensive manufacturing program offering equipment and systems to customers in extruded snack food processing machinery and allied industries.
We can supply individual items of equipment or complete factory layouts and lines. which are custom-built to meet the requirements of customers.Full functional department:Research and development department.Technical design team.manufactur team.Inspection team.after sale service team.
Our Service
Before sale services:
1.Provide the free consultation of the equipment.
2.Provide the standard device and the flow chart.
3. According to the clients’ special requirement. offering the reasonable plan and free design helping to select the equipment.
Services during the sales:
1.Help client design the factory and offering professional advice. free engineering drawing for the factory layout.
2.Welcome to visit our factory or the domestic clients’factory.
3.Inspect the machine before leaving the factory.
After sale services:
1. Oversea install and debug the equipment.
2. Train the first-line operator.
3. Provide the basic formula
4. Operation/ Service/ Maintenance Manual: Provided In English.
5. We will provide 1-2 engineer to the client's factory for the installation and training. The client need provide room. food. round-trip transportation. visa fee and a nominal daily subsidy per person.
1.Provide the free consultation of the equipment.
2.Provide the standard device and the flow chart.
3. According to the clients’ special requirement. offering the reasonable plan and free design helping to select the equipment.
Services during the sales:
1.Help client design the factory and offering professional advice. free engineering drawing for the factory layout.
2.Welcome to visit our factory or the domestic clients’factory.
3.Inspect the machine before leaving the factory.
After sale services:
1. Oversea install and debug the equipment.
2. Train the first-line operator.
3. Provide the basic formula
4. Operation/ Service/ Maintenance Manual: Provided In English.
5. We will provide 1-2 engineer to the client's factory for the installation and training. The client need provide room. food. round-trip transportation. visa fee and a nominal daily subsidy per person.
FAQ
1. How much area the whole production line needs?
A: The best way is telling us your workshop area. then we will draw a draft for you to ensure the rational use of your space.
2. If the power supply is not 3ph 380V 50HZ. could you offer the suitable machine?
A: Yes. we can offer the suitable machine according to your power supply. for example 3ph 380V 60HZ. 3ph 415V 60 HZ. 3ph 220V 60HZ and so on.
3. Do you supply packing machine?
A: We have long-term cooperation packing machine supplier. we will help to contact them also give best price
A: The best way is telling us your workshop area. then we will draw a draft for you to ensure the rational use of your space.
2. If the power supply is not 3ph 380V 50HZ. could you offer the suitable machine?
A: Yes. we can offer the suitable machine according to your power supply. for example 3ph 380V 60HZ. 3ph 415V 60 HZ. 3ph 220V 60HZ and so on.
3. Do you supply packing machine?
A: We have long-term cooperation packing machine supplier. we will help to contact them also give best price
